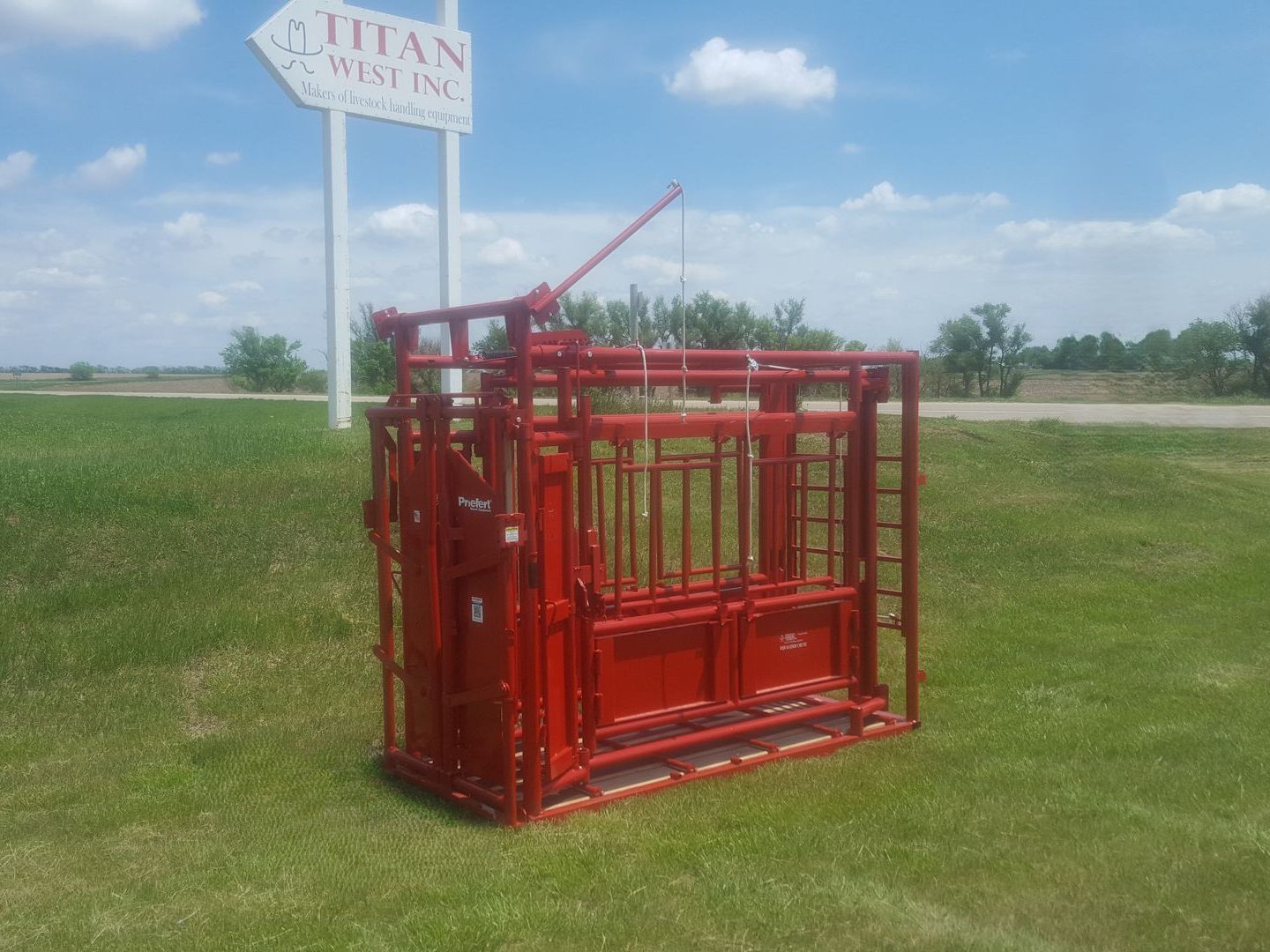

EQUALIZER CHUTE-MANUAL

Standard Features:

• Standard with Priefert Model 91 Headgate
• Straight Parallel Squeeze
• Adjust From 9” To 30”
• 1 Lever For Squeeze And 1 For Release
• Immediate Adjustment On The Squeeze, No Pins Or Bolts
• Side Escape, Both Sides
• Branding Windows, Swing Out Or Can Be Removed
• Foot Doors Swing-Out Or Can Be Removed
• Neck Access Doors Both Sides
• Blackwood Floor

Optional Features:

• Removable Chest Rest
• Aluminum Tailgate
• Palpation Cage
• Portable Attachment

Specifications:

• Overall Dimensions 42” Wide, 85” Tall, 102” Long
• Working Dimensions 30” Wide, 72” Inside Height, 96” Inside Length
• Weight 1,480 Lbs

Optional Features:

• Titan West's Self Catching Headgate
• A portable version of each chute is available
• Optional manual neck extender available for Priefert Model 91 Headgate
• Window Louvers
• Grooming Bars
• 8'' Neck Excess Door
• Palp cage EZ Latch. No hands
• Rear Headgate controls for Priefert Model 91 Headgate
• Split tailgate at back of squeeze (Replaces drop gate)
• Horizontal slide gate at the back of the squeeze (Replaces drop gate)
• Scales available

Standard Features:

• Model 91 Priefert Headgate
• Animat Floor with Removable Cleats
• Double acting Squeeze
• Double side Width Adjustment
• Will handle all sizes of cattle
• Side Escape Both Sides
• Each side gate is equipped with Shoulder High Quick Latch Access Doors
• Both sides feature Foot Doors
• Includes Titan West's unique "Crowd Ahead" bar
• Tail gate is a vertical drop gate that can be locked either up or down
• Controls are fully reversible

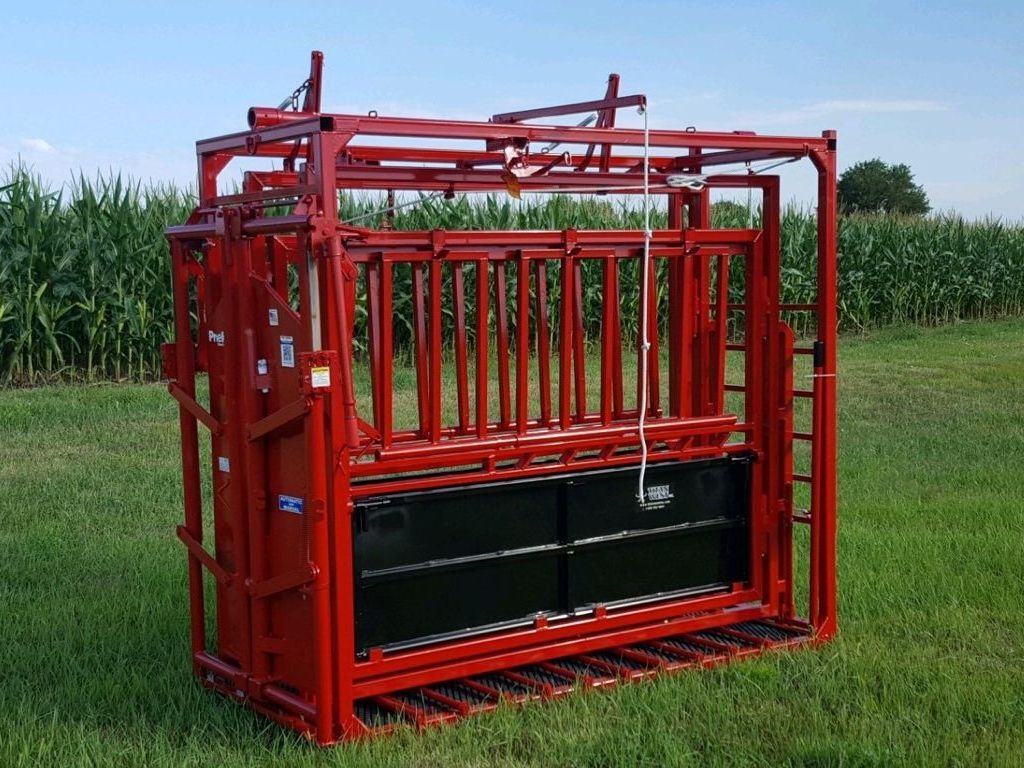

The TWI Standard Working Chute is one of the Strongest Working chute's available today. It is a heavy duty, all steel unit, built to take abuse. The frame is of 2" square and 2 x 3” rectangular tube, high strength steel tubing: with all stress points reinforced for added strength and durability. The Animat floor is standard, with cleats every 6" to provide extra traction. The chute's size is large enough to handle the exotic breeds, yet versatile enough for calves.

CATTLEMAN HYDRAULIC CHUTE

The Titan West Cattleman Chute is one of the most versatile hydraulic chutes on the market, making it the perfect fit for the cow/calf producer. The frame is of 2” square high strength steel tubing; with all stress points reinforced for added strength and durability. A patented neck extender, also featured in Titan West’s Hydraulic Headgate, gently immobilizes an animal's head to make quality vaccinations, implants, etc. The Combo model offers the same features of the Standard model with the exception of an additional palpation cage, accessible from both sides.

Standard Features:

• Horizontal hydraulic Headgate and Tailgate
• Patented hydraulic Neck Extender with a Pressure Relief Valve
• Mini swing arm for controls
• Animat Floor with Removable Cleats
• Rubber Shoulder Cushions
• Double acting V-Squeeze
• Double Side Width Adjustment
• Easily removable chest rest
• Side Escapes Both Sides
• Each side gate is equipped with Shoulder High Quick Latch Access Doors
• Both sides feature Foot Doors
• Includes Titan West's unique "Crowd Ahead" bar
• Vertical drop gate between the squeeze and palpation cage that can be locked either up or down
• 5 HP electric power supply with 220 volt with Vane Pump

Optional Features:

• Pivot hydraulic Headgate and Tailgate
• Full Swing Arm to take controls from side to side and front to back
• Hydraulic lower width adjustment
• Rear Door Remote Valve
• EZ-Lift Portable attachment
• Window Louvers
• Rebar floor
• Grooming bars
• Palp cage EZ latch. No hands
• 8 HP gas power supply
• Scales available

Patent# 5065701

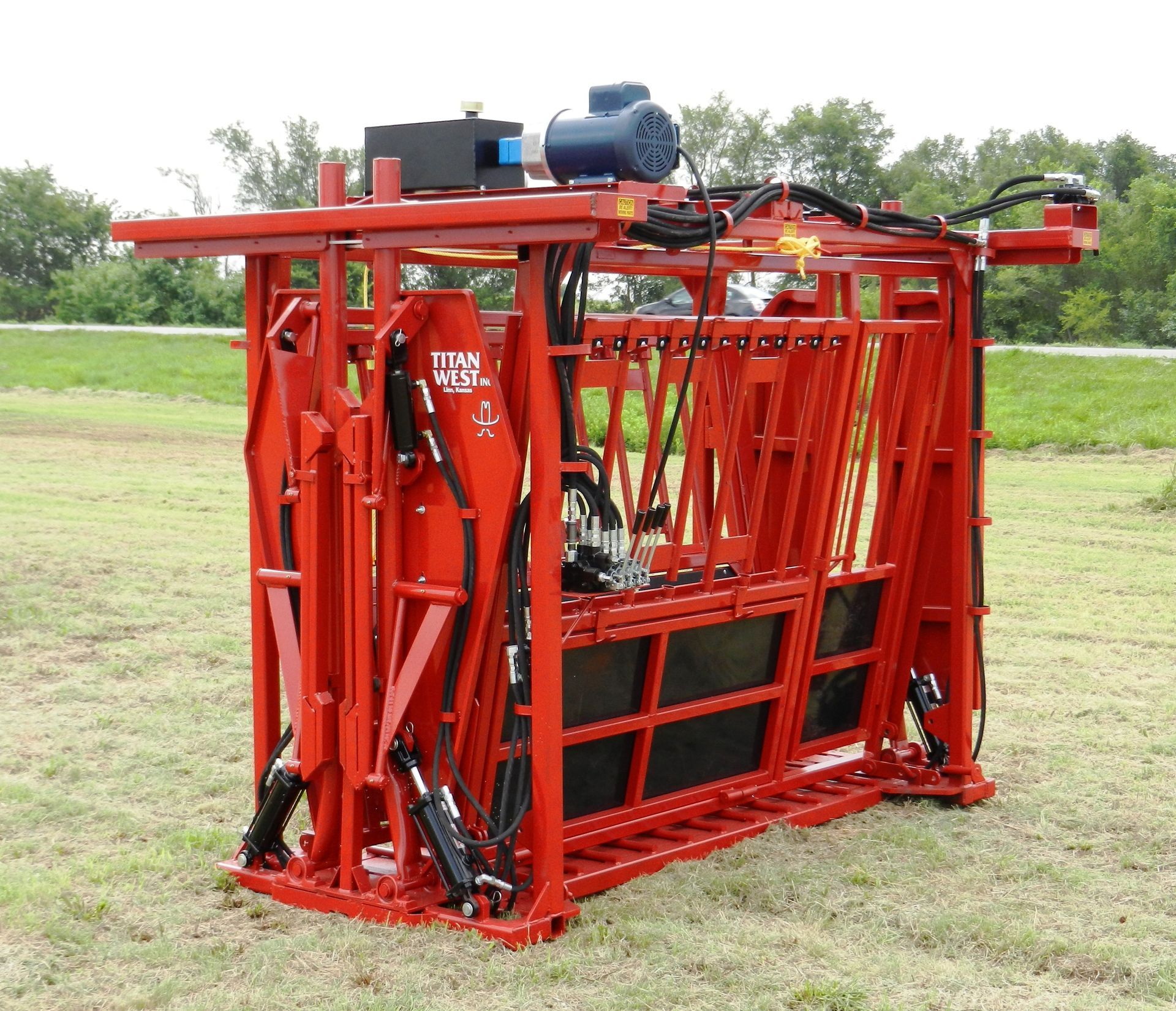

CATTLE CARE HYDRAULIC CHUTE

The Titan West Cattle-Care Chute is one of the strongest hydraulic chutes on the market. This chute is one of the most popular hydraulic chutes for commercial use in Veterinary Clinics, Livestock Auctions, Large Cow-Calf producers and Feedlots. The frame is primarily 2-1/2" square high strength steel tubing; with all the stress points reinforced for added strength and durability. A patented neck extender, also featured in Titan West's Hydraulic and Pivot Headgate, gently immobilizes an animal's head to make quality vaccinations, implant, etc.

Standard Features:

• Horizontal Hydraulic Headgate and Tailgate
• Patented Hydraulic Neck Extender with a Pressure Relief Valve
• Hydraulic Controls conveniently placed at Wrist height
• Animat Floor with Removable Cleats
• Rubber Shoulder Cushions
• Double acting V-Squeeze
• Double Side Width Adjustment
• Easily removable chest rest
• Swing out windows
• Both sides feature Foot Doors
• 5 HP electric power supply with 220 volt with Vane Pump

Optional Features:

• Pivot Hydraulic Headgate and Tailgate
• Side Escape
• Palpation Door
• Bull Package 12" longer (includes a Palpation Door on each side)
• Extended Bull Package 24" longer (includes a 30" Palpation Door on each side)
• Full Swing Arm to take controls from side to side and front to back
• Hydraulic Lower Width Adjustment
• Rear Door Remote Valve
• EZ-Lift Portable Attachment
• Hydraulic Cow Pusher
• Window Louvers
• Drop down windows
• Rebar Floor
• Layover Chute Option
• Hydraulic Leg Puller
• 8 HP gas power supply
• Scales available

Patent# 5065701

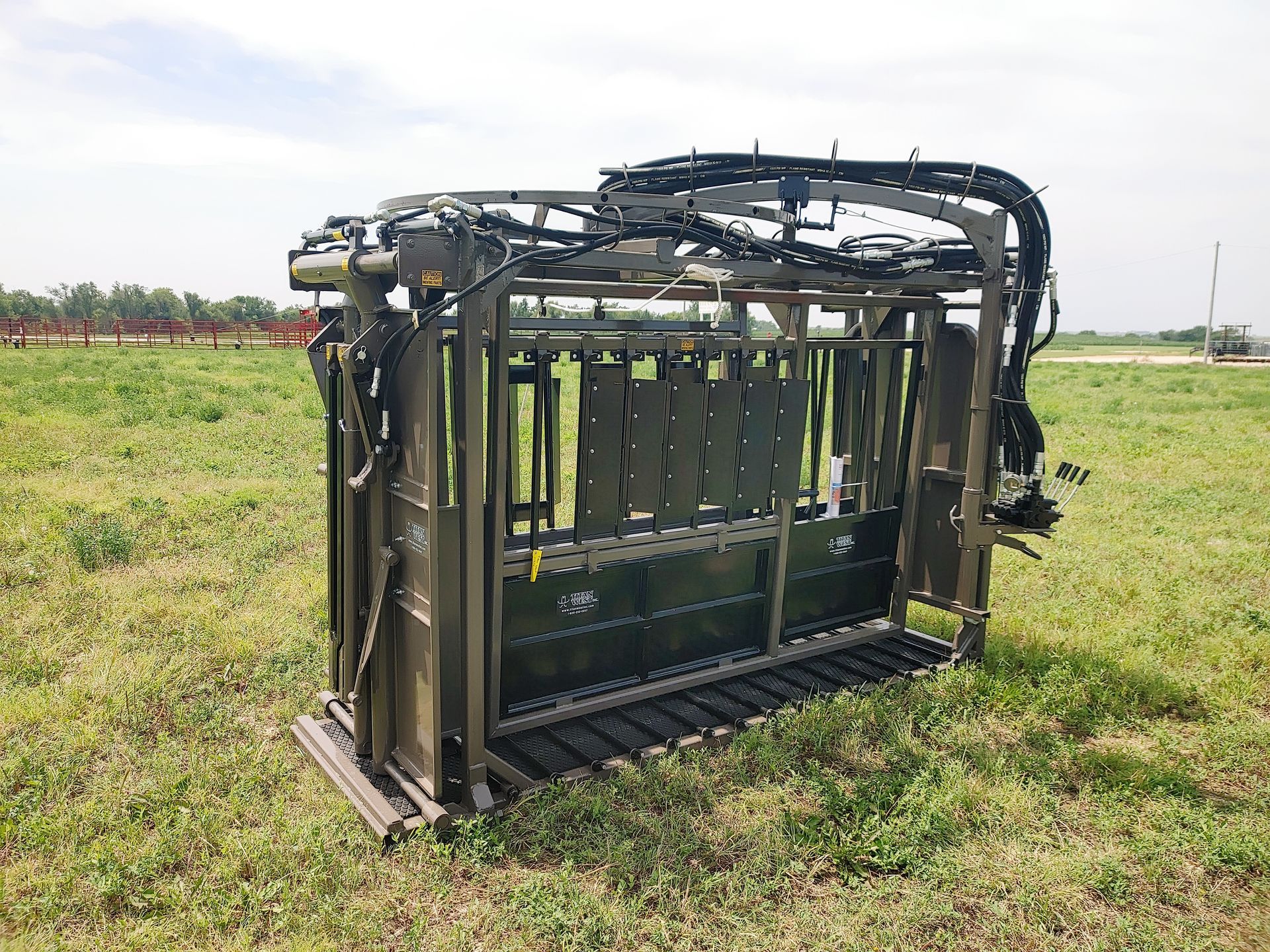

EZ CARE HYDRAULIC CHUTE

The Titan West EZ-Care Chute is one of the quietest and smoothest operating hydraulic chutes available today. This Chute uses poly guide slide tubes to open and close the Horizontal Headgate, Squeeze and Tailgate. The EZ-Care Chute uses a parallel squeeze. The EZ-Care Headgate has a built-in compression spring to help reduce the impact from the animals hitting the headgate. A patented neck extender gently immobilizes an animal's head to make quality vaccinations, implant, etc.

Standard Features:

• Horizontal Headgate and Rear Tailgate
• Parallel Center Squeeze
• 220V (single phase) 7.5 HP Electric Motor and Vane Pump
• Patented Hydraulic Neck Extender with a Pressure Relief Valve
• Heavy Duty Poly Liner on Slide Tubes for Headgate, Center Squeeze and Rear Gate
• No Connections to the Floor at any point for the Headgate, Center Squeeze and Rear Tailgate
• Animat Floor with Removable Cleats
• Easily Removable Chest Rest
• Rubber Shoulder Cushions
• Headgate Spring Loaded at the bottom for additional Shoulder Cushion

Optional Features:

• Side Escape
• Palpation Door
• Bull Package 12” longer (includes a 30" Palpation Door on each side)
• Full Swing Arm to take controls from side to side and front to back
• Rear Door Remote Valve
• EZ-Lift Portable Attachment
• Window Louvres
• Rebar Floor
• 8 HP Gasoline Power Supply
• Scales Available

Patent Pending

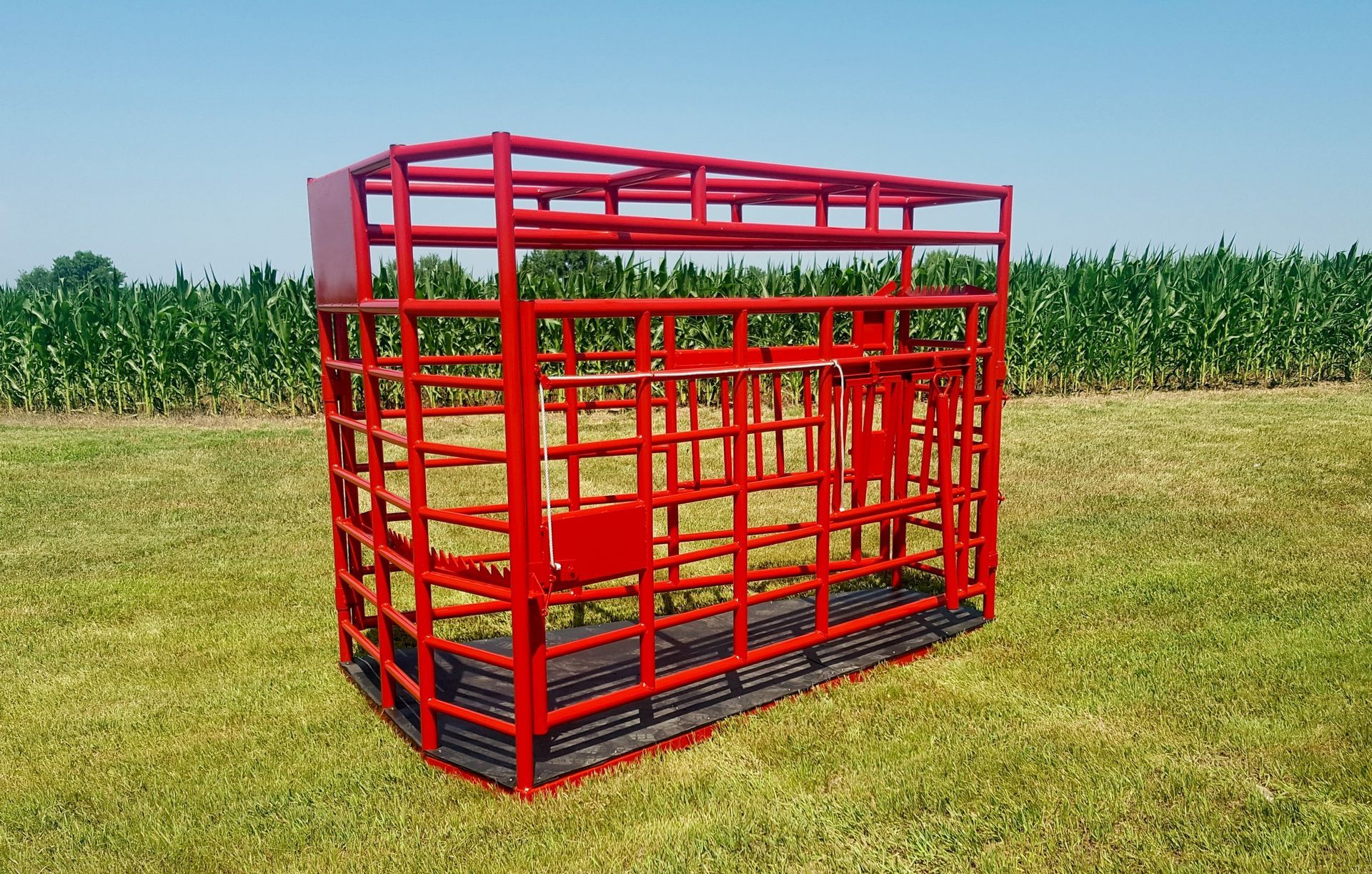

• Designed to hold the Animals without the use of a Headgate
• Positive Ratchet Lock on both side Gates
• Standard with Palpation Gate at back of the Chute
• Double letdown Windows on both sides of the Chute
• Rubber Mat on Chute Floor for traction and noise reduction
• All Chutes are set up Scale Ready
• Standard Colors Red or Klewein Brown

Specifications:

• Length:132 inches
• Width (Front): 83 inches
• Width (Back): 36 inches
• Weight: 1,900 lbs
• Floor Frame: 2x3” 11 GA Rectangular Tube
• Frame: 2 3/8” Schedule 40 Pipe Frame
